Crawler-type mobile small workpiece welding robot
Maximum Arm Span: 1525 mm
Welding Wire Specification: 1525 mm
Welding Method: Gas Metal Arc Welding (GMAW)
Application Areas: Industrial Welding Applications: Custom Large Component Welding, Outdoor Large Component Welding, On-site Maintenance & Repair, Outdoor Welding; applicable to industries including Transformer, Vehicle Transportation, Electric Furnace, Shipbuilding, Wind Power, Steel Structure, Chemical, Environmental Protection, Container, Energy Storage Tank, and Crane Manufacturing.
Service hotline:
+86 158 3822 4227
Product Details

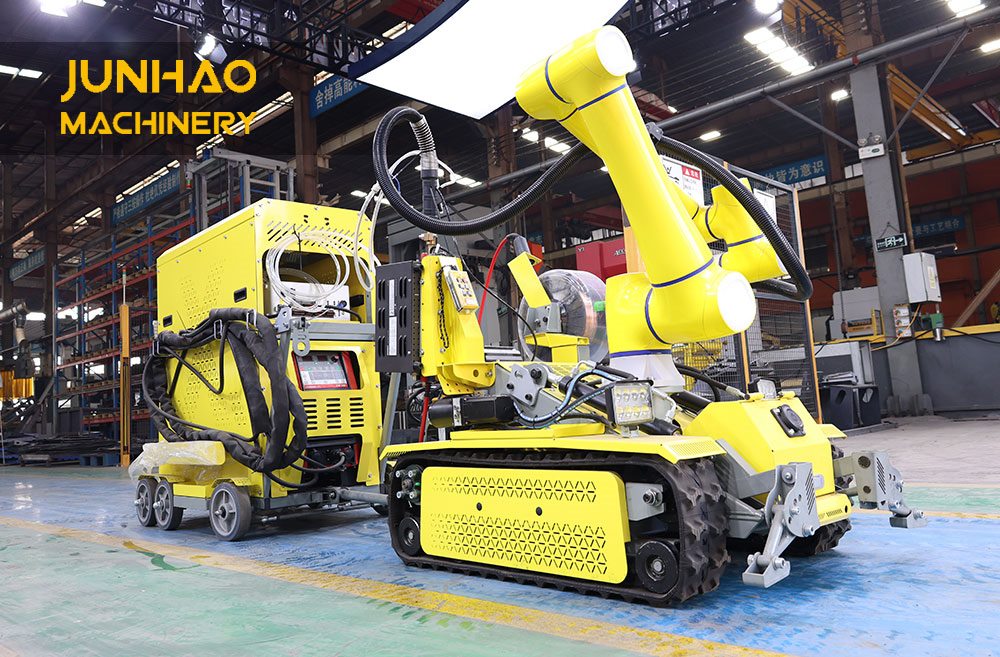

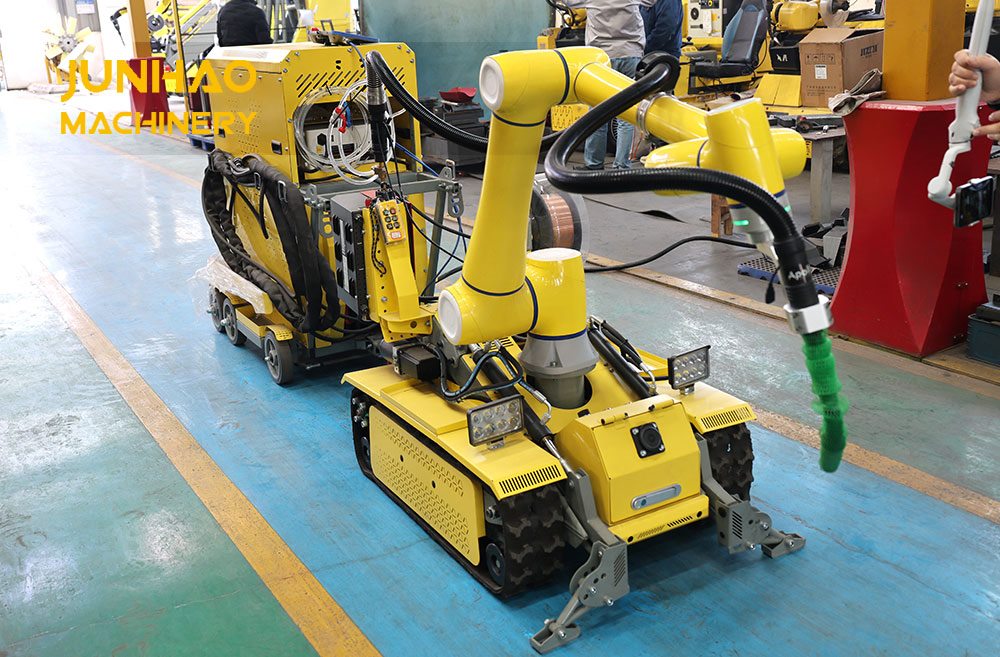

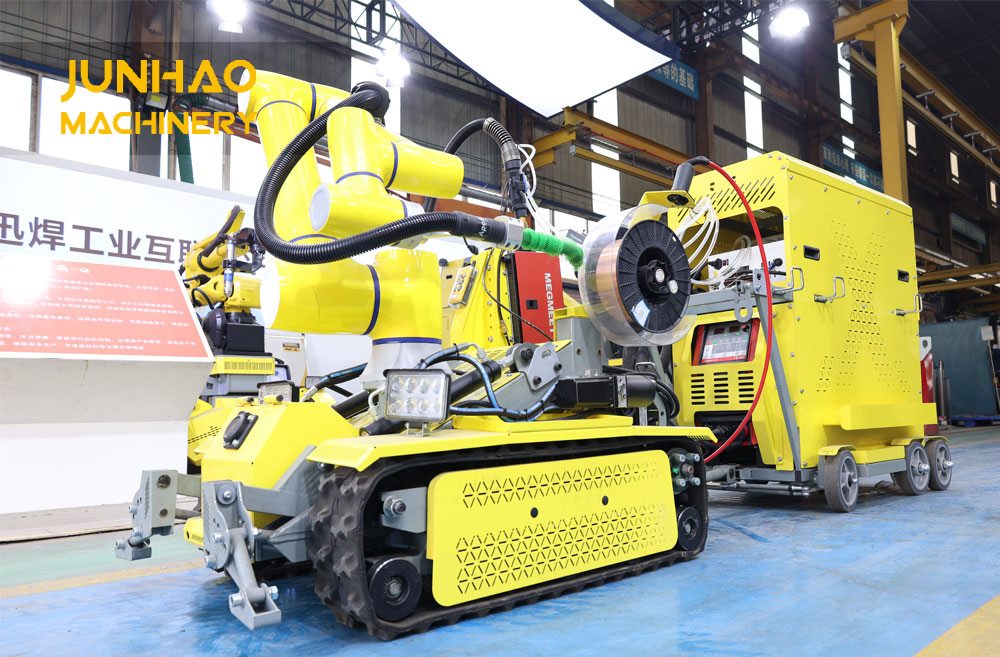

The self-propelled full-scenario small-area welding robot (Model WMM-Xpro-C1300) is a lightweight mobile welding device tailored for small-area operations: With a net weight of only 290KG and a 195.5kg trailer for easy transportation, it features 360° in-place steering, a 3km/h travel speed, and 19KM endurance to move flexibly in small spaces; its 1300mm working radius and 1525mm maximum arm span meet small-area welding needs, while the ±0.03mm repeat positioning accuracy ensures weld quality. It also supports full-position welding (horizontal, flat, vertical, overhead) to efficiently complete multi-pose welding tasks in small areas.
Product Specifications
| Name | Crawler-type mobile small workpiece welding robot |
|---|---|
| Model | WMM-Xpro-C1300 |
| Net Weight | 290 kg |
| Dimensions | 2838×806×1220 mm |
| Working Radius | 1300 mm |
| Maximum Arm Span | 1525 mm |
| Battery Specifications | 48V 15AH Lithium Iron Phosphate Battery |
| Number of Batteries | 1 |
| Maximum Safe Travel Speed | 3km/h |
| Cruising Range | 19KM |
| Steering Angle | 360° In-situ Steering |
| Repeat Positioning Accuracy | ±0.03 mm |
| Welding Method | Gas Metal Arc Welding (GMAW) |
| Welding Positions | Horizontal Welding, Flat Welding, Vertical Welding, Overhead Welding |
| Welding Wire Specification | Welding Wire Diameter: ф0.8 mm ~ ф1.6 mm |
| Trailer Weight | 195.5 kg |

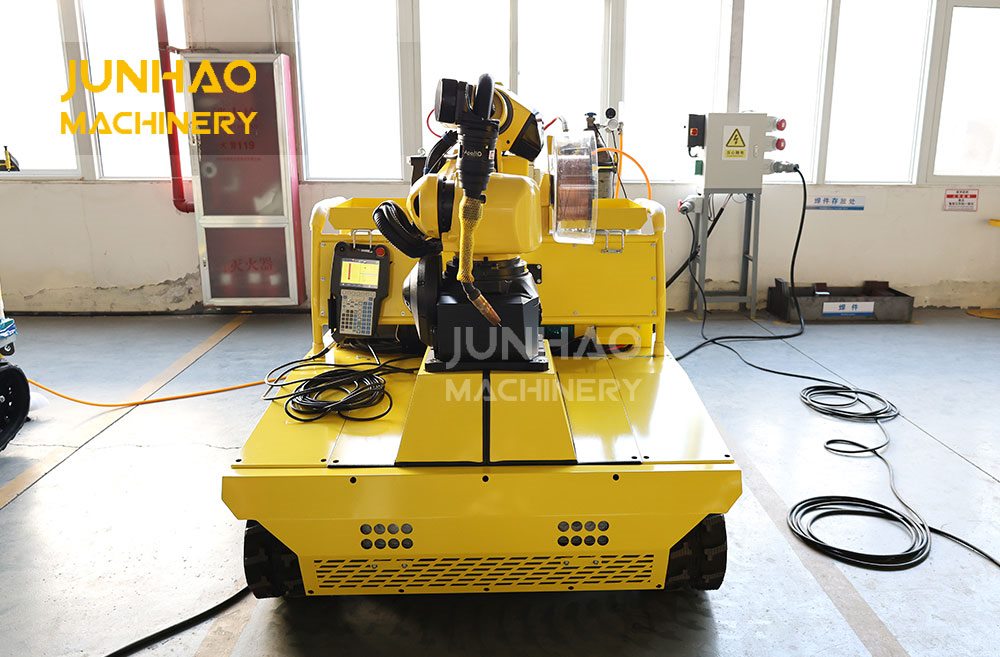

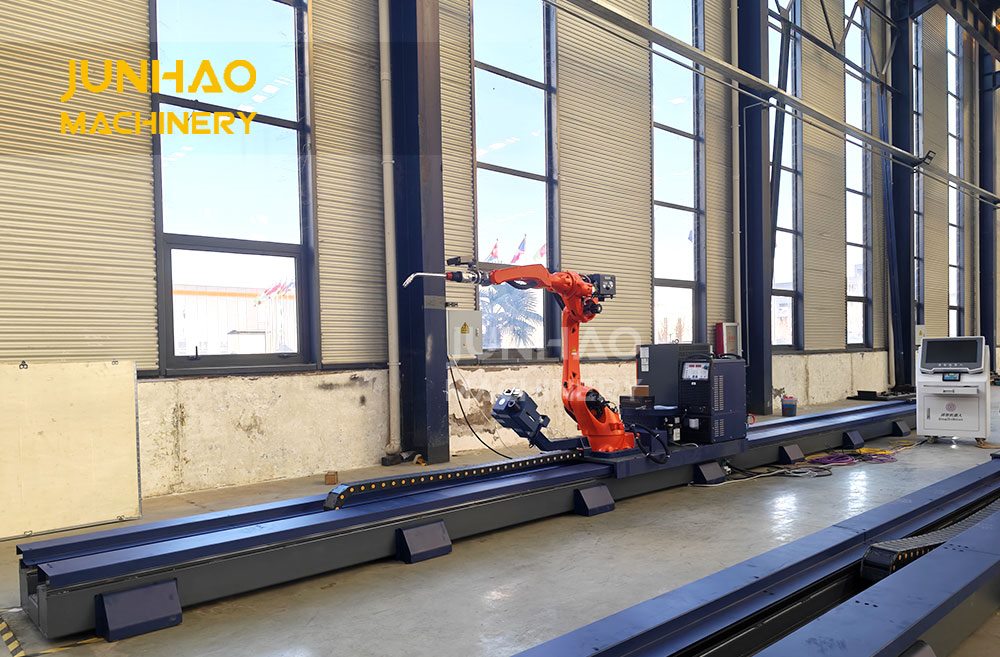

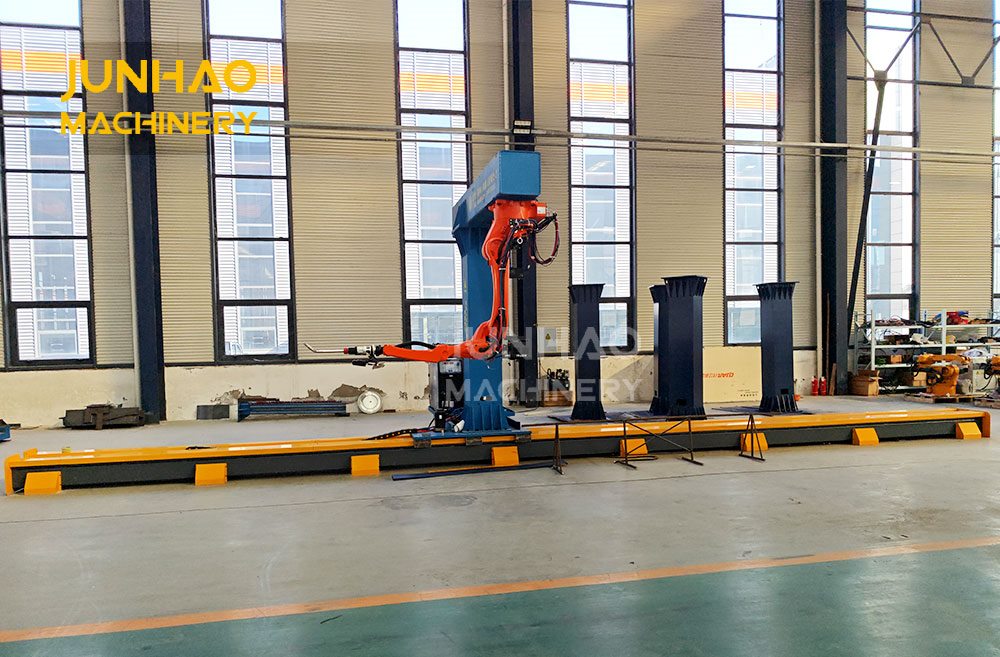

Relevant Cases

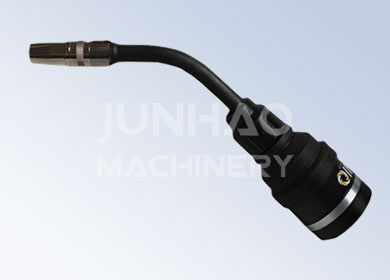

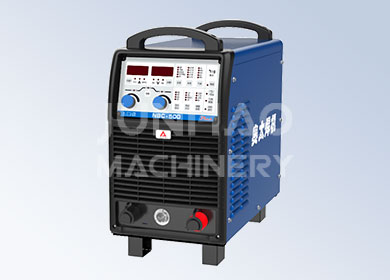

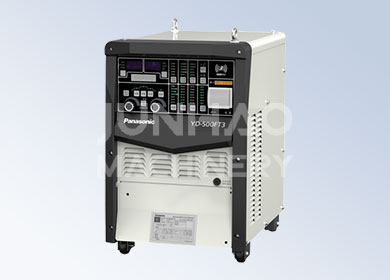

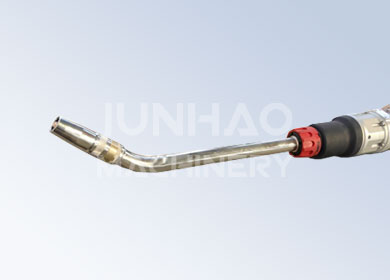

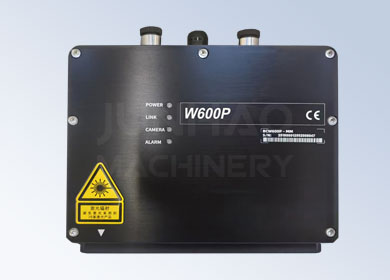

Supporting Equipment
All types of supporting equipment are shipped directly from the original factory, with the craftsmanship and quality of each model fully controlled and guaranteed throughout the process. They also deeply integrate with the main equipment to achieve more complete and systematic operational synergy.
